STOP/TAIL

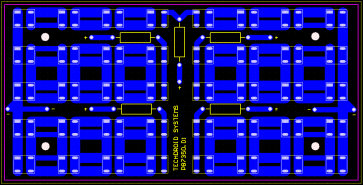

This is the STOP/TAIL section for LED taillight. It consist of 5 sections that can be individually lit. Each sections has 8 LEDs giving the PCB a total of 40 LEDs when all sections are filled. If less then 8 LEDs are used in a section a resistor has to be added to compensate for the missing LEDs. Large connecting traces were used to better dissipate heat that is created by the LEDs.

st_pcb

Not to Scale

CORNER

The corner PCB can be used in either the front corner lenses or in the corner part of the taillight. There are 3 separate sections which can be lit individually each holding 8 LEDs, 24 LEDs total.

Not to Scale

Not to Scale

PWM

A PWM circuit is used to control the STOP/TAIL function. Since the LEDs we use are very high flux and require higher currents than regular LEDs we need to use a PWM. Instead of current limiting using resistors to change the light level we pulse the LEDs to achieve the same effect. This PWM has 28 positive and 7 ground connections allowing you to connect two STOP/TAIL PCBs. The board also allows you to set certain sections of the STOP/TAIL PCB to run independently.

Not to Scale (Pixilated until complete)

Not to Scale (Pixilated until complete)


This image shows some of the possible configurations using the PWM.

This image shows some of the possible configurations using the PWM.

Each taillight of the 3000GT houses 3 incandescent bulbs two of which are brake/tail and one blinker. Opening the housing of the taillight you can see the three sections and the holes where the bulbs go.

91993kgttaillight191993kgttaillight291993kgttaillight3

The housing also contains two diffusers that diffuse the light given out by the bulbs. The whole thing is held together with a type of hot glue which can be softened by placing the entire housing in an oven for a few minutes. You can also use a heat gun to separate the Lexan from the housing.
