STOP/TAIL PCB for 3000GT Taillight

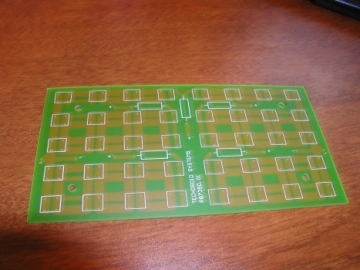

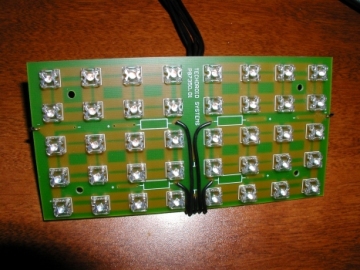

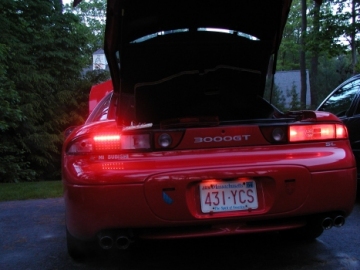

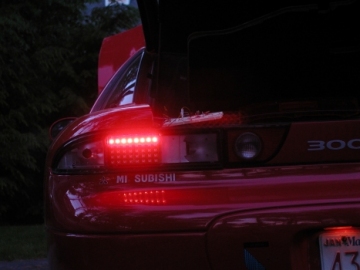

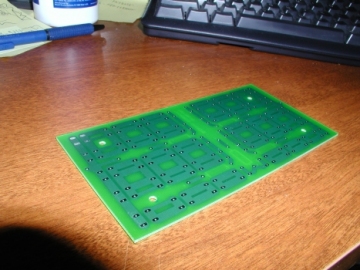

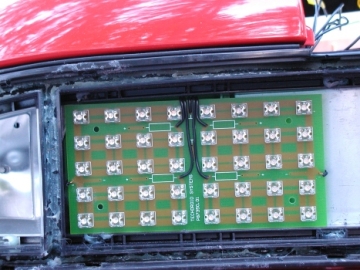

Here are some pictures of the STOP/TAIL PCB. Each side of the car will use two of these. Each PCB will have 40 LEDs mounted on it. Top layer of STOP/TAIL PCB. Solder layer of STOP/TAIL PCB. The PCB has 5 sections each of which can be lit individually. STOP/TAIL PCB with LEDs and connections soldered. STOP/TAIL PCB with LEDs Lit (dimmed for photograph) STOP/TAIL PCB mounted in housing inside the car. Top section of PCB lit. Fully lit PCB Comparison between incandescent and LED taillight.
