1991-99 Mitsubishi 3000GT Taillight/Corner LED Design

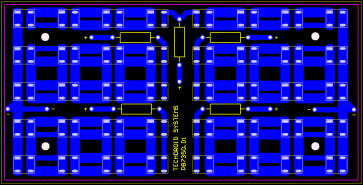

Here is a description of the main 3 PCBs needed to convert the Mitsubishi 3000GT taillights and corner lights to LED arrays. STOP/TAIL This is the STOP/TAIL section for LED taillight. It consist of 5 sections that can be individually lit. Each sections has 8 LEDs giving the PCB a total of 40 LEDs when all sections are filled. If less then 8 LEDs are used in a section a resistor has to be added to compensate for the missing LEDs. Large connecting traces were used to better dissipate heat that is created by the LEDs. NOT TO SCALE CORNER The corner PCB can be used in either the front corner lenses or in the corner part of the taillight. There are 3 separate sections which can be lit individually each holding 8 LEDs, 24 LEDs total. NOT TO SCALE PWM A PWM circuit is used to control the STOP/TAIL function. Since the LEDs we use are very high flux and require higher currents than regular LEDs we need to use a PWM. Instead of current limiting using resistors to change the light level we pulse the LEDs to achieve the same effect. This PWM has 28 positive and 7 ground connections allowing you to connect two STOP/TAIL PCBs. The board also allows you to set certain sections of the STOP/TAIL PCB to run independently. NOT TO SCALE (Pixilated until complete) This image shows some of the possible configurations using the PWM.
